Alpha

使用 Swift 导出与 Swift 的互操作性

Kotlin 通过 Swift 导出提供与 Swift 互操作性的 Alpha 级别支持。Swift 导出允许您直接导出 Kotlin 源代码,并以符合 Swift 习惯的方式从 Swift 调用 Kotlin 代码,从而无需 Objective-C 头文件。

Swift 导出让 Apple 目标平台的多平台开发更加顺畅。例如,如果您有一个包含顶层函数的 Kotlin 模块,Swift 导出可以实现简洁的模块特定导入,从而移除令人困惑的 Objective-C 下划线和重整名称。

当前的 Swift 导出功能包括:

  • 多模块支持。每个 Kotlin 模块都会被导出为独立的 Swift 模块,简化了函数调用。
  • 软件包支持。在导出过程中会显式保留 Kotlin 软件包,避免在生成的 Swift 代码中出现命名冲突。
  • 类型别名。Kotlin 类型别名会被导出并在 Swift 中保留,从而提高可读性。
  • 增强的基元为 null 性支持。与 Objective-C 互操作不同(后者需要将 Int? 等类型装箱到 KotlinInt 等包装类中以保留为 null 性),Swift 导出会直接转换具有为 null 性的信息。
  • 重载。您可以在 Swift 中无歧义地调用 Kotlin 的重载函数。
  • 扁平化的软件包结构。您可以将 Kotlin 软件包转换为 Swift 枚举,从而从生成的 Swift 代码中移除软件包前缀。
  • 模块名称自定义。您可以在 Kotlin 项目的 Gradle 构建配置中自定义生成的 Swift 模块名称。
  • 并发支持。您可以从 Swift 无缝调用 Kotlin 的挂起代码,并能开箱即用地将 kotlinx.coroutines flow 导出为 Swift 的 AsyncSequence。

启用 Swift 导出 ​

Swift 导出目前处于 Alpha 阶段且尚不完整,因此可能会出现破坏性变更。如需试用,请在您的 Kotlin 项目中配置构建文件,并设置 Xcode 以集成 Swift 导出。

配置 Kotlin 项目 ​

您可以在项目中使用以下构建文件作为设置 Swift 导出的起点:

kotlin
// build.gradle.kts
kotlin {

    iosArm64()
    iosSimulatorArm64()

    swiftExport {
        // 设置根模块名称
        moduleName = "Shared"

        // 设置折叠规则
        // 从生成的 Swift 代码中移除软件包前缀
        flattenPackage = "com.example.sandbox"

        // 配置外部模块导出
        export(project(":subproject")) {
            // 设置导出模块的名称
            moduleName = "Subproject"
            // 设置导出依赖项的折叠规则
            flattenPackage = "com.subproject.library"
        }

        // 为链接任务提供编译器参数
        configure {
            freeCompilerArgs.add("-Xexpect-actual-classes")
        }
    }
}

Kotlin 编译器会自动生成所有必要的文件(包括 swiftmodule 文件、静态 .a 库、一个头文件和一个 modulemap 文件),并将它们复制到应用的构建目录中,您可以从 Xcode 访问该目录。

您也可以克隆我们已设置好 Swift 导出的公共示例。

配置 Xcode 项目 ​

要配置 Xcode 以在项目中集成 Swift 导出,请执行以下操作:

  1. 在 Xcode 中,打开项目设置。

  2. 在 Build Phases 选项卡上,找到包含 embedAndSignAppleFrameworkForXcode 任务的 Run Script 阶段。

  3. 在运行脚本阶段将该脚本替换为 embedSwiftExportForXcode 任务:

    bash
    ./gradlew :<Shared module name>:embedSwiftExportForXcode

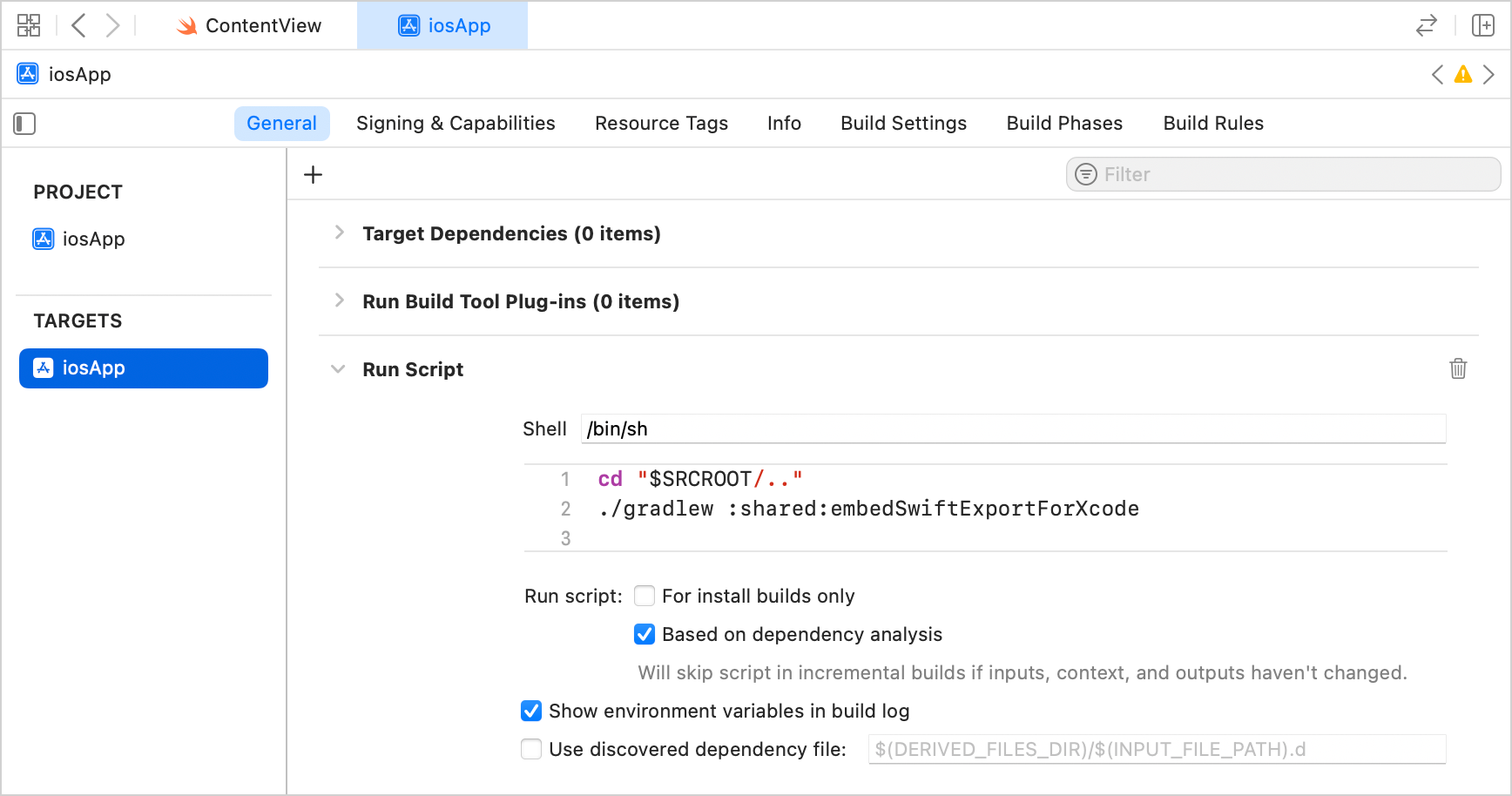

    添加 Swift 导出脚本

  4. 构建项目。构建将在输出目录中生成 Swift 模块。

当前限制 ​

Swift 导出目前仅适用于使用直接集成将 iOS 框架连接到 Xcode 项目的项目。这是使用 IntelliJ IDEA 中的 Kotlin Multiplatform 插件或通过 Web 向导创建的 Kotlin Multiplatform 项目的标准配置。

其它已知问题:

  • 继承自 List、Set 或 Map 的类型在导出期间会被忽略 (KT-80416)。

  • List、Set 或 Map 的继承者无法在 Swift 侧实例化 (KT-80417)。

  • 导出到 Swift 时,Kotlin 泛型类型形参会被类型擦除为其上界。

  • 目前没有 IDE 迁移提示或自动化工具可用。

  • 使用需要选择性加入 (opt-in) 的声明时,必须在 Gradle 构建文件的模块级别添加显式的 optIn 编译器选项。例如,对于 kotlinx.datetime 库:

    kotlin
    swiftExport {
        moduleName = "Shared"

        export("org.jetbrains.kotlinx:kotlinx-datetime:0.8.0") {
            moduleName = "KotlinDateTime"
            flattenPackage = "kotlinx.datetime"
        }
    }

    // 在模块级别添加单独的 opt-in 块
    compilerOptions {
        optIn.add("kotlin.time.ExperimentalTime")
    }

映射 ​

下表展示了 Kotlin 概念如何映射到 Swift。

KotlinSwift
classclass
object带有 shared 属性的 class
enum classenum
sealed 类与接口enum
typealiastypealias
函数函数
suspend funasync
kotlinx.coroutines flowAsyncSequence
属性属性
构造函数初始值设定项
软件包嵌套枚举
BooleanBool
CharUnicode.UTF16.CodeUnit
ByteInt8
ShortInt16
IntInt32
LongInt64
UByteUInt8
UShortUInt16
UIntUInt32
ULongUInt64
FloatFloat
DoubleDouble
AnyKotlinBase 类
UnitVoid
NothingNever

声明 ​

类 (Classes) ​

Swift 导出仅支持直接继承自 Any 的最终类,例如 class Foo()。它们会被翻译为继承自特殊 KotlinBase 类的 Swift 类:

kotlin
// Kotlin
class MyClass {
    val property: Int = 0

    fun method() {}
}
swift
// Swift
public class MyClass : KotlinRuntime.KotlinBase {
    public var property: Swift.Int32 {
        get {
            // ...
        }
    }
    public override init() {
        // ...
    }
    public func method() -> Swift.Void {
        // ...
    }
}

对象 (Objects) ​

对象会被翻译为具有私有 init 和静态 shared 访问器的 Swift 类:

kotlin
// Kotlin
object O
swift
// Swift
public class O : KotlinRuntime.KotlinBase {
    public static var shared: O {
        get {
            // ...
        }
    }
    private override init() {
        // ...
    }
}

类型别名 (Type aliases) ​

Kotlin 类型别名会原样导出:

kotlin
// Kotlin
typealias MyInt = Int
swift
// Swift
public typealias MyInt = Swift.Int32

枚举 (Enums) ​

Kotlin enum class 声明会被导出为常规的原生 Swift enum 类型:

kotlin
// Kotlin
enum class Color(val rgb: Int) {
    RED(0xFF0000),
    GREEN(0x00FF00),
    BLUE(0x0000FF)
}

val color = Color.RED
swift
// Swift
public enum Color: Swift.CaseIterable, Swift.LosslessStringConvertible, Swift.RawRepresentable {
    case RED, GREEN, BLUE

    public var rgb: Swift.Int32 { get }
}

密封类与接口 (Sealed classes and interfaces) ​

在 Kotlin 中定义的密封层次结构会被映射到 Swift 枚举,从而支持详尽的 switch 语句。

Swift 导出会为每个密封类型生成一个 .sealedType() 方法。该方法返回一个 Swift 枚举,其成员(case)与密封层次结构的直接子类相对应。您可以嵌套这些调用来匹配更深层级的层次结构。

例如,在 Kotlin 中声明一个包含类层次结构的密封接口:

kotlin
// Kotlin
sealed interface Shape

class Circle : Shape {
    override fun toString(): String = "Circle"
}

class Rectangle : Shape {
    override fun toString(): String = "Rectangle"
}

fun createCircle(): Shape = Circle()

在 Swift 侧,您可以使用无需 default 分支的详尽 switch:

swift
// Swift
let shape = createCircle()

let name = switch shape.sealedType() {
    case let .circle(type): "It's a \(type.value)"
    case let .rectangle(type): "It's a \(type.value)"
}
// name == "It's a Circle"

由于 switch 是详尽穷举的,因此如果在密封层次结构中添加了新的子类,编译器会发出警告,以便您可以立即对其进行处理,而无需依赖 switch 的 default 分支。

函数 (Functions) ​

Swift 导出支持简单的顶层函数和方法:

kotlin
// Kotlin
fun foo(a: Short, b: Bar) {}

fun baz(): Long = 0
swift
// Swift
public func foo(a: Swift.Int16, b: Bar) -> Swift.Void {
    // ...
}

public func baz() -> Swift.Int64 {
    // ...
}

对于 Kotlin 的扩展函数,接收者参数会变成位于第一个位置的普通 Swift 参数:

kotlin
// Kotlin
fun Int.foo(): Unit = TODO()
swift
// Swift
func foo(_ receiver: Int32) {}

带有 vararg 的 Kotlin 函数会被映射到 Swift 的变参函数参数:

kotlin
// Kotlin
fun log(vararg messages: String)
swift
// Swift
public func log(messages: Swift.String...)

属性 (Properties) ​

Kotlin 属性会被翻译为 Swift 属性:

kotlin
// Kotlin
val a: Int = 0

var b: Short = 15

const val c: Int = 0
swift
// Swift
public var a: Swift.Int32 {
    get {
        // ...
    }
}
public var b: Swift.Int16 {
    get {
        // ...
    }
    set {
        // ...
    }
}
public var c: Swift.Int32 {
    get {
        // ...
    }
}

构造函数 (Constructors) ​

构造函数会被翻译为 Swift 初始值设定项:

kotlin
// Kotlin
class Foo(val prop: Int)
swift
// Swift
public class Foo : KotlinRuntime.KotlinBase {
    public init(
        prop: Swift.Int32
    ) {
        // ...
    }
}

类型 ​

kotlin.Nothing ​

Kotlin 的 Nothing 类型会被翻译为 Never 类型:

kotlin
// Kotlin
fun foo(): Nothing = TODO()

fun baz(input: Nothing) {}
swift
// Swift
public func foo() -> Swift.Never {
    // ...
}

public func baz(input: Swift.Never) -> Void {
    // ...
}

分类器类型 (Classifier types) ​

Swift 导出目前仅支持直接继承自 Any 的最终类。

软件包 (Packages) ​

Kotlin 软件包会被翻译为嵌套的 Swift 枚举,以避免名称冲突:

kotlin
// Kotlin
// foo.bar 软件包中的 bar.kt 文件
fun callMeMaybe() {}
kotlin
// Kotlin
// foo.baz 软件包中的 baz.kt 文件
fun callMeMaybe() {}
swift
// Swift
public extension foo.bar {
    public func callMeMaybe() {}
}

public extension foo.baz {
    public func callMeMaybe() {}
}

public enum foo {
    public enum bar {}

    public enum baz {}
}

并发 ​

挂起函数 ​

您可以从 Swift 调用 Kotlin 的挂起代码。Kotlin 挂起函数和挂起函数类型会被导出为 Swift 的 async 对应项:

kotlin
// Kotlin
suspend fun hello(): String {
    delay(1000)
    return "Hello Swift! This is Kotlin."
}
swift
// Swift
let msg = try await hello()

Flow ​

您还可以将 kotlinx.coroutines flow 导出为 Swift 的 AsyncSequence:

kotlin
// Kotlin
// 导出 Flow 时保留 String 类型
fun flowOfStrings(): Flow<String> = flowOf("hello", "any", "world")
swift
// Swift
var actual: [String] = []

// 从 Kotlin 推断 String 类型
for try await element in flowOfStrings().asAsyncSequence() {
    actual.append(element)
}

协程调度器 ​

默认情况下,当您从 Swift 调用 Kotlin 挂起函数或使用 asAsyncSequence 函数时,Kotlin 会创建一个协程上下文,该上下文使用 Dispatchers.Default 调度器并在其中执行导出的代码。

要在不同的调度器上运行导出的代码,请使用 withContext() 函数在 Kotlin 中切换协程上下文。例如:

kotlin
suspend fun runOnMain(): Int = withContext(Dispatchers.Main) {
    delay(10L)
    42
}

跨语言继承 ​

Swift 导出支持跨语言继承。此功能的一个常见用例是反向导入模式,即在 Kotlin 中定义协定,并在 Swift 侧提供平台特定的实现。当您需要使用无法直接导入到 Kotlin 中的纯 Swift 库时,这种方式尤其有用。

要实现此模式,您需要声明一个 Kotlin 接口和一个供 Swift 实现继承的 Kotlin 超类。然后,您在 Swift 中实现该接口,并将 Swift 对象传递给接受该接口的 Kotlin 函数。例如,针对 CryptoKit 库:

  1. 在 Kotlin 侧,声明一个接口、一个接受该接口的函数以及一个 open 基类:

    kotlin
    // Kotlin
    interface CryptoProvider {
        fun hashMD5(input: String): String
    }

    fun processHash(provider: CryptoProvider, input: String): String = provider.hashMD5(input)

    open class SwiftBase
  2. 在 Swift 侧,继承导出的 SwiftBase 类,使用纯 Swift 库实现该接口,并将对象传回 Kotlin:

    swift
    // Swift
    import CryptoKit

    final class IosCryptoProvider: SwiftBase, CryptoProvider {
        func hashMD5(input: String) -> String {
            guard let data = input.data(using: .utf8) else { return "failed" }
            return Insecure.MD5.hash(data: data).description
        }
    }

    let provider = IosCryptoProvider()

    // 调用 Kotlin 函数,该函数会反过来在 Swift 中调用 hashMD5()
    print(processHash(provider: provider, input: "Hello, world!"))

当 Kotlin 接收到该 Swift 对象时,会将其视为常规 Kotlin 接口的实现,直接调用 Swift 代码。

Swift 导出的演进 ​

我们计划在未来的 Kotlin 版本中扩展并逐步稳定 Swift 导出,改善 Kotlin 与 Swift 之间的互操作性。您可以留下您的反馈:
